Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender
Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender
Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender Micro Advantage
► Transmits 4K HDMI2.0 video signals up to 300 meters over OM4 MMF
► Support keyboard and mouse signal transmission
► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4
► Transmitter support local loop output

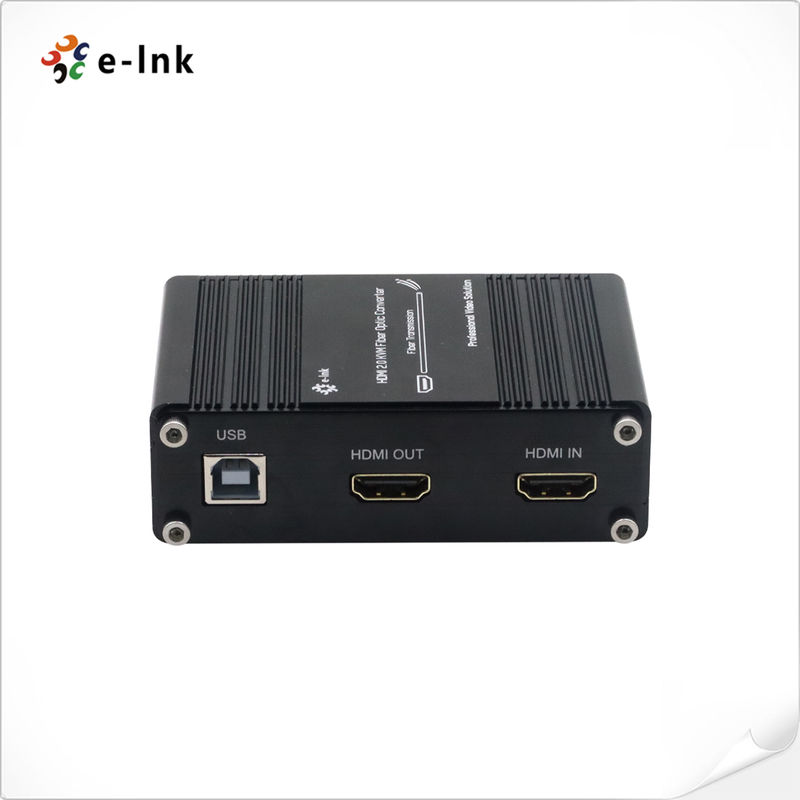

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse, fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
► Simple to install, plug and play
Micro Mini 4K HDMI Fiber Extender with External Audio Overview
LNK-109KVM Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender, consists of a Transmitter and a Receiver unit that allows you to extend HDMI 2.0 and USB HID signals up to 300 meters (984 feet) over LC OM4 MM Fiber Optic Cabling. The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.
The Transmitter uses a distribution chip to make one HDMI input become two outputs, one output uses Wavelength-division multiplexing technology to convert four high-speed differential signals into optical fiber output through the photoelectric conversion engine, and the other output is local output. The Receiver restores the signal input from the optical fiber to HDMI output.
Micro Mini 4K HDMI Fiber Extender with External Audio Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Standards
|
HDMI 2.0 and HDCP 2.2
|
|
|
Maximum pixel clock
|
600MHz
|
|
|
Data speed
|
18Gbps(6 Gbps/CH)
|
|
|
Resolution range
|
4K@60Hz/4K@30Hz/1080p/720p
|
|
|
Connector
|
Female HDMI type A
|
|
|
Impedance
|
100Ω
|
|
K/M
|
Interface
|
PC: MINI-USB
Keyboard And Mouse: USB-A
|
|
Optical fiber
|
Interface
|
LC connector
|
|
|
Fiber type
|
OM4 Multimode
|
|
|
Wavelength
|
850nm
|
|
|
Interface bandwidth
|
18Gbps
|
|
|
Transmission distance
|
OM4 Multimode fiber: 300M
|
|
Other
|
Power supply
|
The power adapter: DC 5V
|
|
|
Power dissipation
|
TX:＜1.5W; RX:＜1W
|
|
|
Temperature
|
Operating: 0℃ ~ +55℃
|
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
|
Dimension (LxWxH)
|
93 x 70 x 28(mm)
|
|
|
Gross weight
|
0.25KG
|
|
|
The warranty
|
1-year free warranty
|
Micro Mini 4K HDMI Fiber Extender with External Audio Ordering Information
|
Model
|
Description
|
|
LNK-109KVM
|
Uncompressed Mini 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3/4 Multimode Fiber, LC, 300 meters
|
Micro Mini 4K HDMI Fiber Extender with External Audio Picture
