Micro Mini 4K HDMI Fiber Extender

Name: Micro Mini 4K HDMI Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-MH4K-MM
Price: 134.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: Porcelana

Nombre de la marca: E-link

Certificación: CE, FCC, RoHS

Número de modelo: LNK-MH4K-MM

Condiciones de pago y envío

Cantidad de orden mínima: 1 por ciento

Precio: Negotiated

Detalles de empaquetado: Paquete de exportación estándar

Tiempo de entrega: 5-12 días de trabajo

Condiciones de pago: T/t, PayPal

Capacidad de la fuente: 1000pcs/boca

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:

Temperatura de funcionamiento::	-10 a + 60 ° C	Temperatura de almacenamiento::	-20 a + 85 °C
Humedad:	5% a 90% HR (no condensación)	Conector de fibra:	SFP/LC
Dimensiones (wxdxh)::	3.07 x 1.06 x 0.69in (78x27x17 mm)	Peso::	50 g / 0.11 lb

Temperatura de funcionamiento::	-10 a + 60 ° C
Temperatura de almacenamiento::	-20 a + 85 °C
Humedad:	5% a 90% HR (no condensación)
Conector de fibra:	SFP/LC
Dimensiones (wxdxh)::	3.07 x 1.06 x 0.69in (78x27x17 mm)
Peso::	50 g / 0.11 lb

Descripción

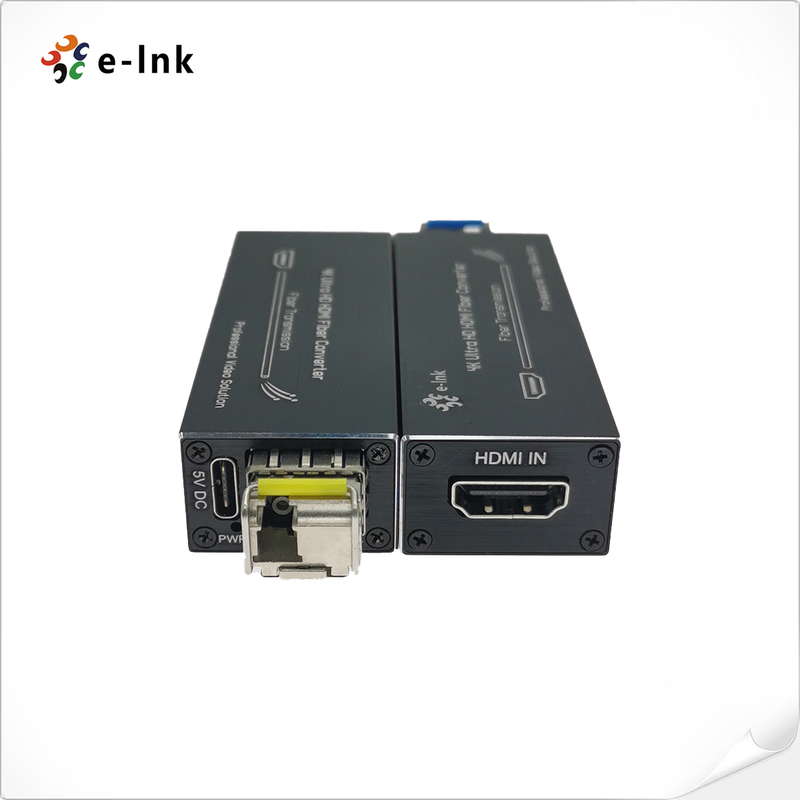

Micro Mini 4K HDMI Fiber Extender

Micro Mini 4K HDMI Fiber Extender Advantage

► HDMI 1.4a and HCCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC CEC HPD Signal Support

► Data rate up to 10.3Gbps

► Transmit up to 80km over fiber cable

► Supports all modes up to 4K*2K@30Hz Resolution

► USB-C Connector for Power Input

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Case Temperature: -10~60°C

Micro Mini 4K HDMI Fiber Extender Overview

The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission

of an uncompressed lossless HDMI 1.4a signal over optical fiber up to distances of 80

km, at a resolution of 4Kx2K.

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for

transmission over optical fiber. The Receiver converts the serial data back to an HDMI

signal. The transceivers are RoHS compliant and lead-free per requirements in Europe

and China. This product is ideal for large-screen display, conferencing systems and

home entertainment and so on. The device has the ability of anti-interference, to ensure

the stability of the signal.

Micro Mini 4K HDMI Fiber Extender Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Connector	Female HDMI type A
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Color space 420, 400
Dynamic EDID	Plug & Play, no need to learn
Fiber Connector	SFP/LC
Bandwidth	10.3Gbps
Transmission Distance	300m (Over OM3 Fiber)
	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 60°C
Storage Temperature	-20 to + 85°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	3.07 x 1.06 x 0.69in (78x27x17mm)
Weight	50g / 0.11 lb

Micro Mini 4K HDMI Fiber Extender Ordering Information

Model	Description
Model	Description
LNK-MH4K-MM	Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input
LNK-MH4K-S20	Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input
LNK-MH4K-S40	Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input
LNK-MH4K-80	Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
LNK-MH4K-S80	Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
