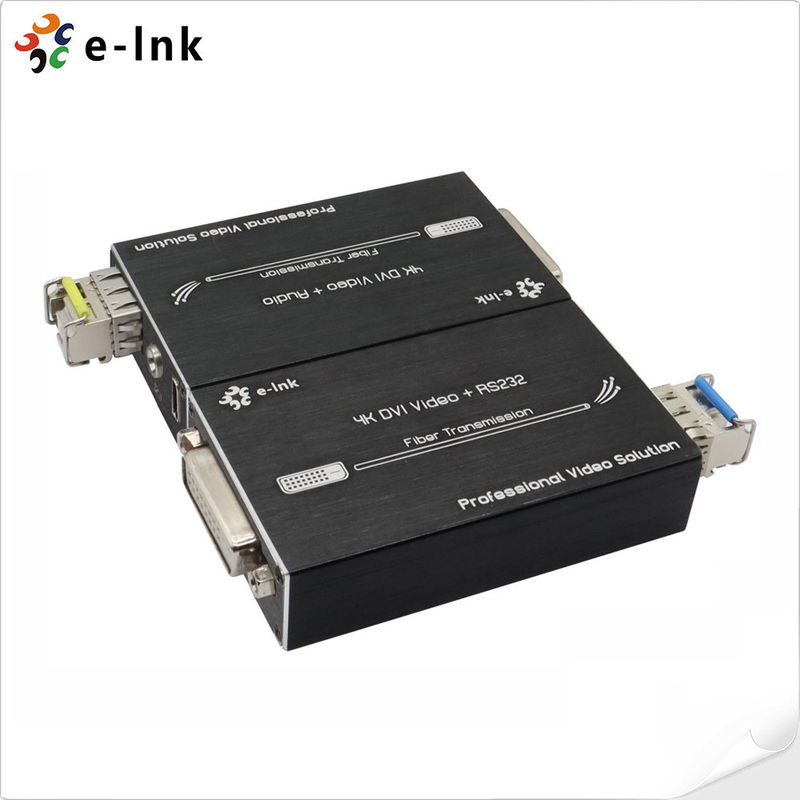

Mini 4K DVI Fiber Optic Extender with Stereo Audio

Name: Mini 4K DVI Fiber Optic Extender with Stereo Audio
Brand: E-link China Technology Co.,LTD
SKU: LNK-MDA4K
Price: 134.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: China

Nombre de la marca: E-link

Certificación: ROHS,FCC,CE

Número de modelo: LNK-MDA4K

Condiciones de pago y envío

Cantidad de orden mínima: 1 PCS

Precio: Negociable

Detalles de empaquetado: Paquete de Exportación Estándar del Extensor

Tiempo de entrega: 3-12 días hábiles

Condiciones de pago: L/C, T/T, Western Union, Moneygram, PayPal

Capacidad de la fuente: 1000 pcs/mes

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                      Mini DVI Fiber Optic Extender, 4K DVI Fiber Optic Extender, Stereo Audio DVI Fiber Optic Extender


Palabras clave:	Extensor de fibra óptica DVI	Temperatura de funcionamiento:	-10 ~ + 50°C
Dimensiones (W x D x H):	2,87 x 1,73 los x 0.69in (73x44x17m m)	Peso:	60 g/0,13 libras
Humedad:	5% a 90% de RH (sin condensación)	Fuente de alimentación:	5 V CC (USB-C)

Palabras clave:	Extensor de fibra óptica DVI
Temperatura de funcionamiento:	-10 ~ + 50°C
Dimensiones (W x D x H):	2,87 x 1,73 los x 0.69in (73x44x17m m)
Peso:	60 g/0,13 libras
Humedad:	5% a 90% de RH (sin condensación)
Fuente de alimentación:	5 V CC (USB-C)

Descripción

Mini 4K DVI Fiber Optic Extender with Stereo Audio

Mini 4K DVI Fiber Optic Extender with Stereo Audio Advantages

► DVI 1.0 and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support 3.5mm External Stereo Audio

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Temperature: -10~50°C

Mini 4K DVI Fiber Optic Extender with Stereo Audio Overview

The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and audio signal over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Mini 4K DVI Fiber Optic Extender with Stereo Audio Technical Indexes

Type of Extender	Fiber Transmitter for DVI signal over Optical Fiber Cable
Input Signals	DVI
Connector	DVI-D
Signal Support	DVI 1.0 format standard and HDCP compliant
Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
Audio Interface	3.5MM external stereo audio
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
	Up to 80km (Over Single-mode Fiber)

Mini 4K DVI Fiber Optic Extender with Stereo Audio Ordering Information

Model	Description
Model	Description
LNK-MDA4K-MM	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S20	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S40	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S80	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

Mini 4K DVI Fiber Optic Extender with Stereo Audio 0
