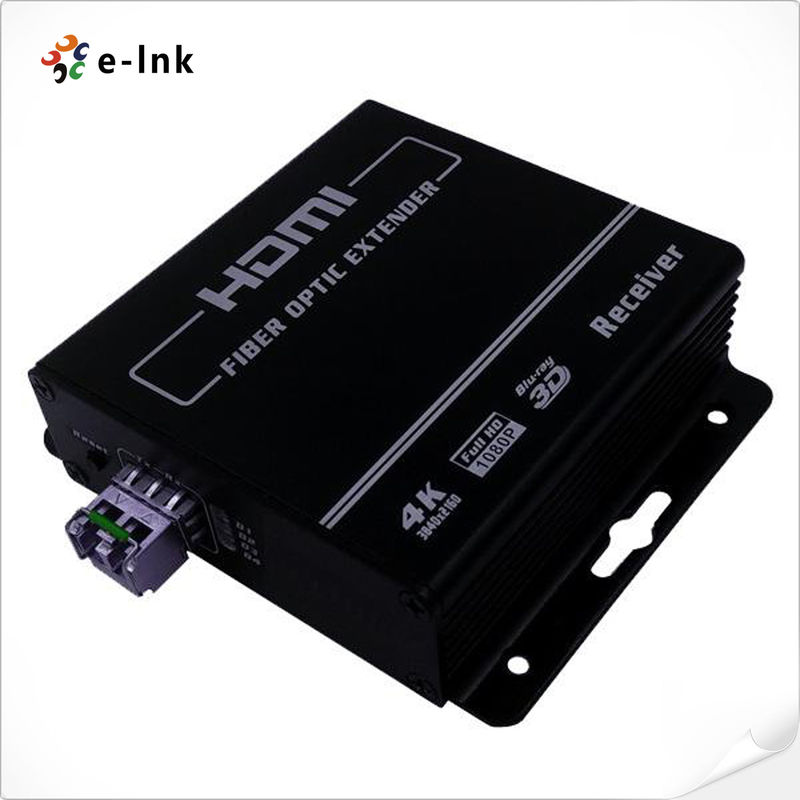

4K HDMI Fiber Optic Extender

Name: 4K HDMI Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-H4K101
Price: 134.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: China.

Nombre de la marca: E-link

Número de modelo: LNK-H4K101

Documento: E-link LNK-H4K101 4K HDMI F...d).pdf

Condiciones de pago y envío

Minimum Order Quantity: 1 pcs

Precio: Negociable

Detalles de empaquetado: Embalaje de cartón

Tiempo de entrega: 3-12 días hábiles

Condiciones de pago: L/C, T/T, Western Union, Moneygram, PayPal

Supply Ability: 1000 pcs/month

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                      Fiber Optic HDMI Extender, 4K HDMI Fiber Optic Extender


Power dissipation:	MAX 4W	Power supply:	The power adapter: DC 5V/2A
Interface bandwidth:	10Gbps	Wavelength:	Multi-mode 850nm / Single-mode 1310nm(optional)
Fiber type:	Single-mode or Multimode	Interface:	SFP model – LC connector

Power dissipation:	MAX 4W
Power supply:	The power adapter: DC 5V/2A
Interface bandwidth:	10Gbps
Wavelength:	Multi-mode 850nm / Single-mode 1310nm(optional)
Fiber type:	Single-mode or Multimode
Interface:	SFP model – LC connector

Descripción

4K HDMI Fiber Optic Extender

Advantages

► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;

► Support video resolution up to 3840*2160@30Hz, 3D signal;

► Compliance with HMDI 1.4; High compatibility;

► Transmitter includes EDID memory to cache the EDID from any display;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

Overview

The LNK-H4K101 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.4; HDCP 1.2
	Maximum pixel clock	340MHz
	Maximum data rate	10.2Gbps
	Resolution range	Up to 3840*2160@30Hz
	Connector	Female HDMI type A
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Multi-mode / single-mode (optional)
	Wavelength	Multi-mode 850nm / Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	Max 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1048928mm

Order Information

Item	Description

LNK-H4K101	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port(Excl. SFP), support 10G SFP+ module, including 1 transmitter & 1 receiver, used by pairs P.S: HDCP/EDID/CEC Function is not available when using BIDI SFP+ module


4K HDMI Fiber Optic Extender 1

Application

4K HDMI Fiber Optic Extender 2
