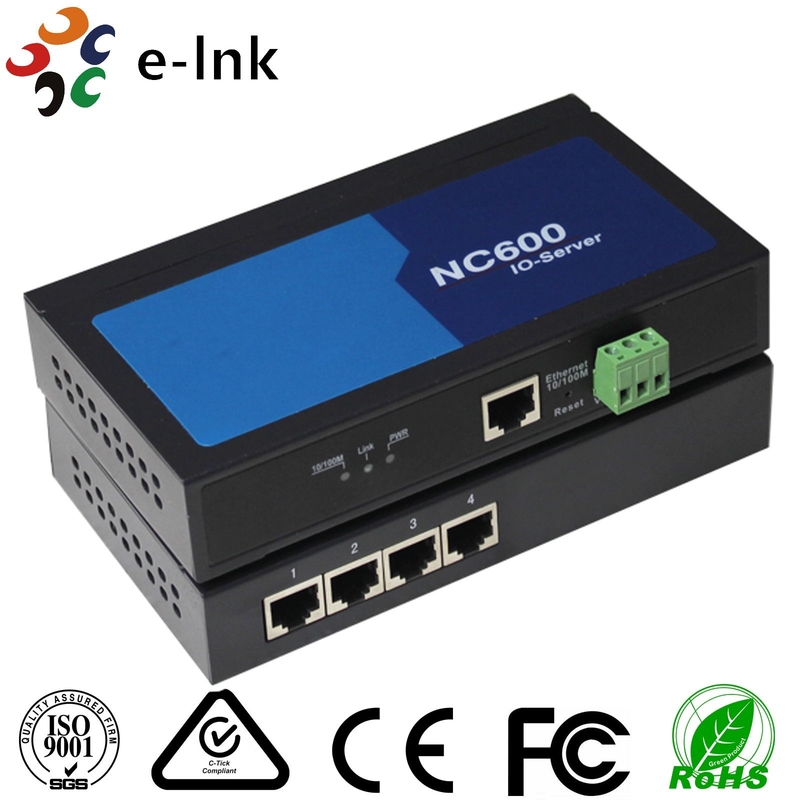

4Ch RS-232/422/485 To Ethernet Server

Items

Description

CPU

32bit,100 MHZ

Memory

8M

Ethernet interface

Number of Ports:1

Speed:10/100 Mbps, auto MDI/MDIX

Connector:8-pin RJ45

Magnetic Isolation Protection: 2.4 kV built-in

Default IP address:192.168.0.233

Serial interface

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF

Baudrate: 300bps to 460.8 kbps

Serial

Line Protection

5 kV ESD protection for all signals

Terminator for RS-485: 120 Ω

Software

Network Protocols: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet,

DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP

Configuration Options: Web Console, Telnet Console, Windows Utility

Operating Mode: TCP realport, UDP realport, Multi screens TTY,PPP dialout,PPP daemon/Line printer daemon/MCP/ Simple UDP/Group real port

Windows Real COM Drivers:     Windows 95/98/ME/NT/2000, Windows

XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012

R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Real TTY Drivers: Linux 2.4.x, 2.6.x

Storage Temperature/Humidity

-10℃  - 80℃/ 5% -90% RH(no condensation)

Physical Characteristics

Housing: Meta

Dimensions: Without mounting kit: 160 x 89 x 29 mm

With mounting kit: 160 x 89 x 29 mm

Operating Temperature:

Standard Models: 0 to 55°C (32 to 131°F)

Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature: -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Power

Input Voltage: 5 / 12 /24/48VDC, Default:DC5V/2A

Warranty

5 years
