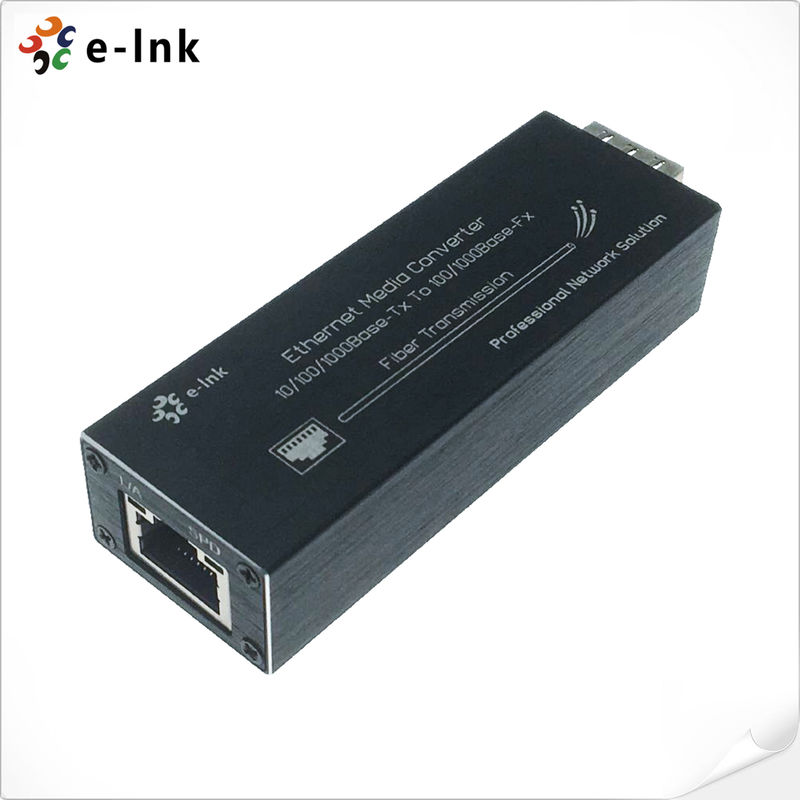

Mini SFP Media Converter
, 10/100/1000BASE-T to 1000BASE-X Media Converter
Mini SFP Media Converter with 10/100/1000BASE-T to 100/1000BASE-X
Mini SFP Media Converter with 10/100/1000BASE-T to 100/1000BASE-X
Model : LNK-M3011-SFP
Overview
100/1000BASE-X (LNK-M3011-SFP) is a high-performance network conversion device that
utilizes advanced switching technology to achieve seamless media conversion. As a Mini SFP
Media Converter with 10/100/1000BASE-T to 100/1000BASE-X, it strictly adheres to IEEE802.3,
IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards, ensuring stable and reliable operation
across various network environments.
This Mini SFP Media Converter with 10/100/1000BASE-T to 100/1000BASE-X supports two
key types of media network connections: 10Base-T/100Base-TX/1000Base-T and 100/1000
Base-X. It efficiently interconverts electrical signals from 10Base-T/100Base-TX/1000Base-T
twisted pairs with optical signals from 100/1000Base-SX/LX, breaking through the distance
constraints of traditional copper cable transmission. Notably, it extends the network transmission
distance from 100 meters via copper cable to a maximum of 120km using fiber optic cables,
significantly expanding network coverage.
What distinguishes this Mini SFP Media Converter with 10/100/1000BASE-T to 100/1000
BASE-X is its versatile transmission modes, supporting multi-mode dual fiber, single mode
dual fiber, and single mode single fiber transmission. Additionally, it features an intelligent
energy-saving design: when plugged into a computer’s USB port, it shuts down automatically
when the computer is turned off, reducing unnecessary power consumption. Its micro-mini
size makes it an excellent solution for fiber-to-the-laptop applications, where Gigabit fiber
connectivity is needed but local power is unavailable, further enhancing its practicality in
diverse scenarios.
Features
► Smallest media converters available; tuck the unobtrusively behind a PC
► 10/100 /1000Base-T to 100/1000Base-X SFP
► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
► USB-powered for portability, or use 5~15VDC wide range power input
► Ultra compact and weigh less than 2 ounces
► Support 9k jumbo frame
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
► Including a Power Supply
Technical Indexes
|
Parameter
|
Specifications
|
|
Access mode
|
10/100/1000Mbps Gigabit Ethernet
|
|
Standard
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
|
|
Fiber Port
|
SFP - 100/1000M adaptive
|
|
Wavelength
|
850nm/1310nm/1550nm (Based on SFP Module used)
|
|
Transmission distance
|
Fiber Cable: Depends on SFP Module
Category-5 twisted pairs: 100m
|
|
Port
|
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs
One Optical port: SFP
|
|
Conversion means
|
Media conversion
|
|
LFP
|
Not Support
|
|
BER
|
<10-9
|
|
MTBF
|
100,000 hours
|
|
LED indicator
|
PWR (Power supply)
TX (LINK100/1000, TP cable rate 100/1000M)
FX/ACT (Optical link action /TP cable packet forwarding action)
|
|
Power supply
|
DC 5~15V (Type-C)
|
|
Power consumption
|
<3W
|
|
Operating temperature
|
0~45ºC
|
|
Operating humidity
|
5%~90%
|
|
Maintaining temperature
|
-40~70ºC
|
|
Maintaining humidity
|
5% ~ 90% non-condensing
|
|
Weight
|
46g
|
|
Dimensions (W x D x H)
|
78 x 27 x 18 mm
|
Application
