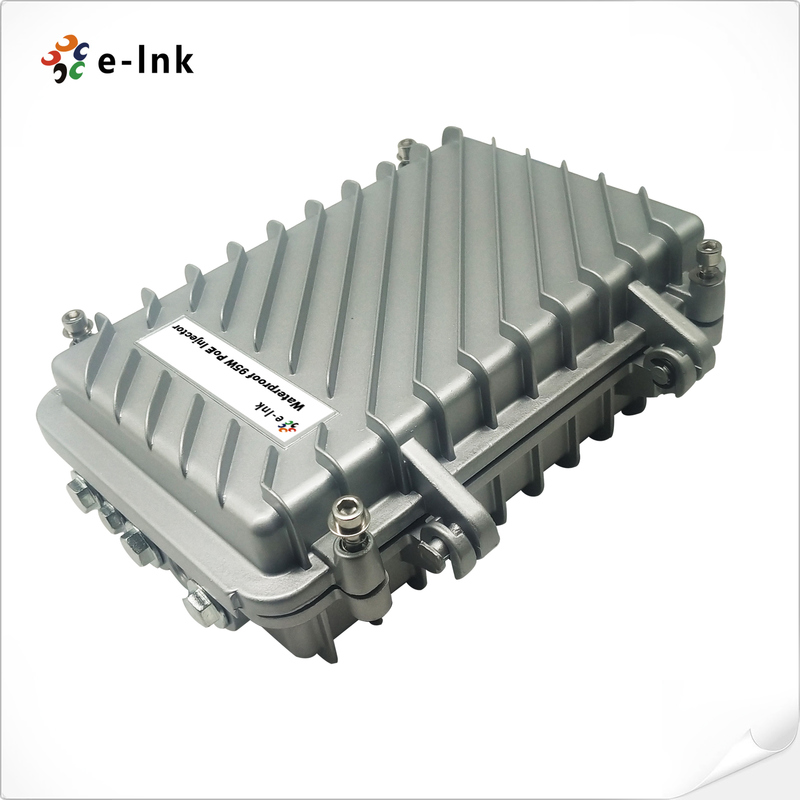

Industrial Waterproof 95W PoE Injector Outdoor IP67 6KV Surge Protection Gigabit

Detalles del producto

Lugar de origen: PORCELANA

Nombre de la marca: E-link

Certificación: ISO9001, CE, ROHS, FCC

Número de modelo: LNK-WP901

Condiciones de pago y envío

Cantidad de orden mínima: 1 por ciento

Precio: US$215-US$219

Detalles de empaquetado: Embalaje de cartón estándar de inyector de fibra de fibra HDMI

Tiempo de entrega: 1-3 días hábiles

Condiciones de pago: T/T, Western Union, Moneygram, PayPal

Capacidad de la fuente: 1000/mes

Obtenga el mejor precio
Contacta ahora
Especificaciones
Resaltar:
Ingreso::
48 ~ 57vdc
Velocidad de datos::
10/100/1000Mbps
Protección contra sobrecargas común del modo (10/700us)::
6KV
MONTAJE::
Montado en el poste
El IP valoró::
IP67
Tamaño (LxWxH)::
260 mm x 210 mm x 80 mm
Ingreso::
48 ~ 57vdc
Velocidad de datos::
10/100/1000Mbps
Protección contra sobrecargas común del modo (10/700us)::
6KV
MONTAJE::
Montado en el poste
El IP valoró::
IP67
Tamaño (LxWxH)::
260 mm x 210 mm x 80 mm
Descripción
Industrial Waterproof 95W PoE Injector Outdoor IP67 6KV Surge Protection Gigabit

Industrial Waterproof 95W PoE Injector Outdoor IP67 6KV Surge Protection Gigabit

Model : LNK-WP901


 Product Description & Overview

Engineered for demanding outdoor applications, the LNK-WP901 represents a high-performance

industrial-grade PoE injector delivering robust 95W power output through advanced 4-pair power

distribution. This professional-grade solution features comprehensive 6KV surge protection (10/700μs)

on all network interfaces, ensuring maximum equipment safety in challenging environmental conditions.

Fully compliant with IEEE 802.3bt PoE++ standards, this industrial injector maintains reliable Gigabit

Ethernet connectivity while providing sufficient power for high-demand devices including PTZ cameras,

wireless access points, and advanced IP terminal equipment.


The unit's weatherproof construction guarantees consistent operation across extreme temperature ranges

while protecting against moisture, dust, and electrical interference. Designed specifically for outdoor

infrastructure deployments, this PoE injector enables seamless integration of power-hungry devices

using existing Ethernet cabling without requiring network modifications. Its industrial-grade components

and enhanced protection mechanisms make it ideally suited for security systems, smart city applications,

and industrial automation projects where uninterrupted power delivery and network reliability are critical.

The injector's plug-and-play installation simplifies deployment while maintaining full compatibility with

standard network infrastructure, offering a complete power solution for outdoor IP-based systems

requiring high-power PoE delivery.

Key Features Bullets

  • Industrial IP67-Rated Enclosure
    Complete waterproof and dustproof protection for harsh outdoor environments

  • Advanced 6KV Surge Protection
    Comprehensive 10/700μs surge protection on both LAN and PoE ports

  • High-Power 95W LTPoE++ Output
    Supports 95W power delivery for demanding PDs using 4-pair power distribution

  • Extended Temperature Operation
    Industrial-grade -40°C to 80°C operating range for extreme conditions

  • Dedicated Data & Power Ports
    Separate RJ45 input and PoE output ports for optimized connectivity

  • Flexible Wall-Mount Installation
    Versatile mounting options for easy deployment in various environments


Technical Specifications & Indexes

Parameter

Specifications

Standard

IEEE802.3 10Base-T Ethernet

IEEE802.3u 100Base-Tx Fast Ethernet

IEEE802.3ab 1000Base-T Gigabit Ethernet

Support terminal equipment with IEEE802.3af/at/bt, PoE++

RoHS Compliance

WEEE Compliance

Protection Level: IP67, IEC60529, NEMA 250

Input & Output

Input : 48~57VDC

Output: IEEE802.3bt 95W

Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)

Data Speed: 10/100/1000Mbps

Working Environment

Operating Temperature: -40to 80

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -40to 85

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 5000meters

AC Surge Protection

Common mode surge protection(10/700us): 6KV

Differential mode surge protection (10/700us): 1.5KV

PoE Surge Protection

Protected line: 1,2,3,4,5,6,7,8

Common mode surge protection(10/700us): 6KV

Differential mode surge protection (10/700us): 1.5KV

Mechanical Characteristics

Case: Metal

Color: Gray

Mounting: Pole-mounted

IP Rated: IP67

Size (LxWxH): 260mm X 210mm X 80mm

Weight: 1.5KG

Safety Approvals

CE, FCC, IP67

EMI

FCC CFR47 Part 15, EN55024, EN55032

Industrial Waterproof 95W PoE Injector Outdoor IP67 6KV Surge Protection Gigabit 0EMS

IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)

IEC61000-4-3(RS) 10V/m(80MHz~2GHz)

IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV

IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM

IEC61000-4-6(CS) 10V(150kHz~80MHz)

Immunity

IEC60068-2-6(Vibration)

IEC60068-2-27(Impact)

IEC60068-2-32(Free Fall)



Ordering information

Model

Description

LNK-WP901

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection



Application Scenarios

  • Powering high-wattage PTZ surveillance cameras in outdoor environments

  • Deploying industrial wireless systems in extreme weather conditions

  • Supporting outdoor digital signage and information display systems

  • Enabling connectivity for industrial automation equipment outdoors

  • Providing reliable PoE for transportation infrastructure monitoring systems

Industrial Waterproof 95W PoE Injector Outdoor IP67 6KV Surge Protection Gigabit 1
