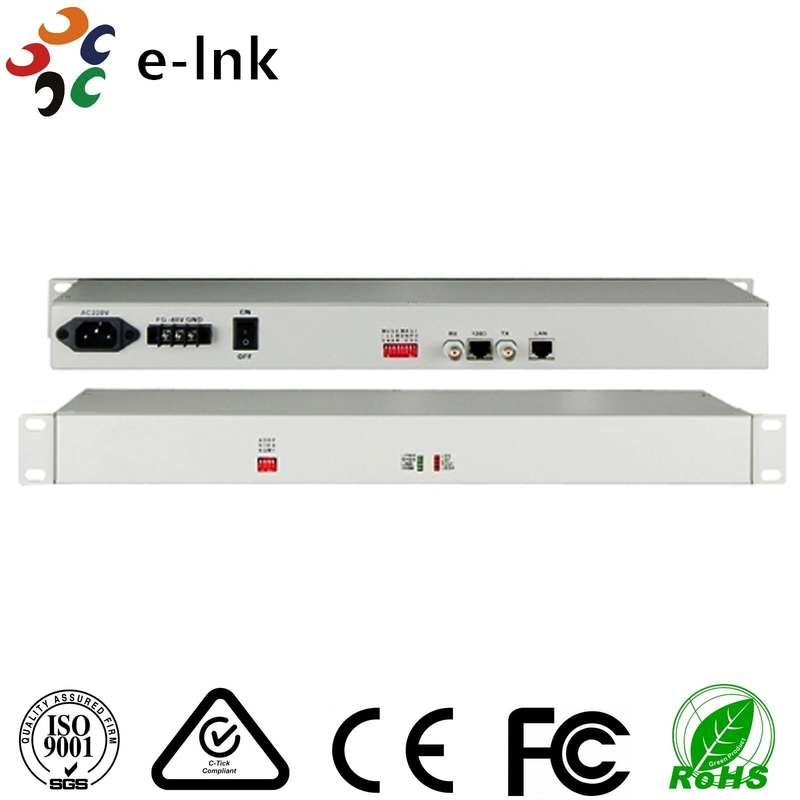

Unframed 1E1 to 1FE Interface Converter

Unframed 1E1 to 1FE Interface Converter

Unframed 1E1 to 1FE Interface Converter  Advantage

· Based on self -copyright IC

· Support unframed mode (2048K) set and can manage the remote device condition, OAM management data did not take up user’s timeslot

· Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop back;

· Have indicator when the device is power-off or E1 line is broken or lose signal;

· Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;

· The Ethernet interface supports jumbo frames (2036 Bytes);

· Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering

· Ethernet interface supports10M/100M, half/full duplex auto- Negotiation and AUTO-MDIX (crossed line and straightly connected line self-adaptable);

· Have Ethernet monitor self-reset function, the equipment will not dead

· Can achieve the remote device setting any 5 mode of Ethernet and can closed the AUTO-MDIX function;

Unframed 1E1 to 1FE Interface Converter Overview

This interface converter provides one unframed 2048K E1 interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

Unframed 1E1 to 1FE Interface Converter Technical Indexes

Unframed 1E1 to 1FE Interface Converter Application
