Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Micro Mini Media Converter Overview

LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology

to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards.

Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and

100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with

optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper

cable to 120km Max via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual

fiber and single mode single fiber.

When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off

the computer, which saves energy. Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop

applications where you need Gigabit fiber connectivity but local power isn’t available.

Micro Mini Media Converter Features

► Smallest media converters available; tuck the unobtrusively behind a PC

► 10/100 /1000Base-T to 100/1000Base-X SFP

► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)

► USB-powered for portability, or use 5~15VDC wide range power input

► Ultra compact and weigh less than 2 ounces

► Support 9k jumbo frame

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost

► Including a Power Supply

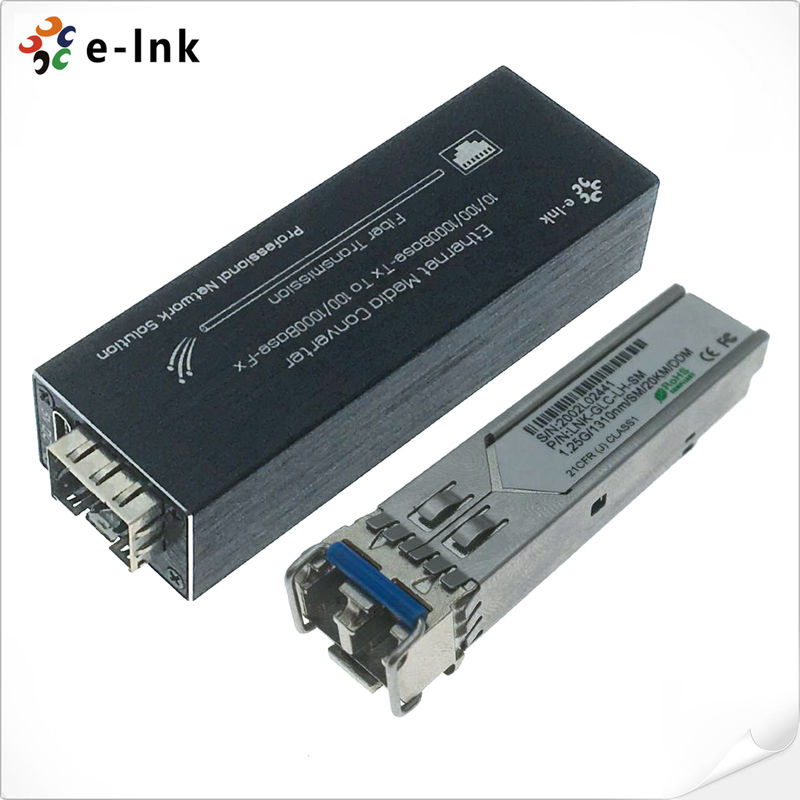

Micro Mini Media Converter Picture

Micro Mini Media Converter Technical Indexes
