12SC Duplex Din-rail Mount Fiber Patch Panel

Name: 12SC Duplex Din-rail Mount Fiber Patch Panel
Brand: E-link China Technology Co.,LTD
SKU: LNK-FSB-D-12SC
Price: 369.00 USD
Availability: InStock

Detalles del producto

Place of Origin: China

Nombre de la marca: E-link

Certificación: ISO9001, CE, FCC, RoHS

Model Number: LNK-FSB-D-12SC

Documento: E-link 12SC Duplex DIN-Rail....0.pdf

Condiciones de pago y envío

Minimum Order Quantity: 1pcs

Precio: Negociable

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:

SC-Duplex:	Max. 12pcs	Strain relief:	PG gland
Casing:	Al (Aluminum)	Cable access/outlet:	From top or bottom, straight or inclined
Mounting Options:	DIN-Rail	Weight:	0.6KG

SC-Duplex:	Max. 12pcs
Strain relief:	PG gland
Casing:	Al (Aluminum)
Cable access/outlet:	From top or bottom, straight or inclined
Mounting Options:	DIN-Rail
Weight:	0.6KG

Descripción

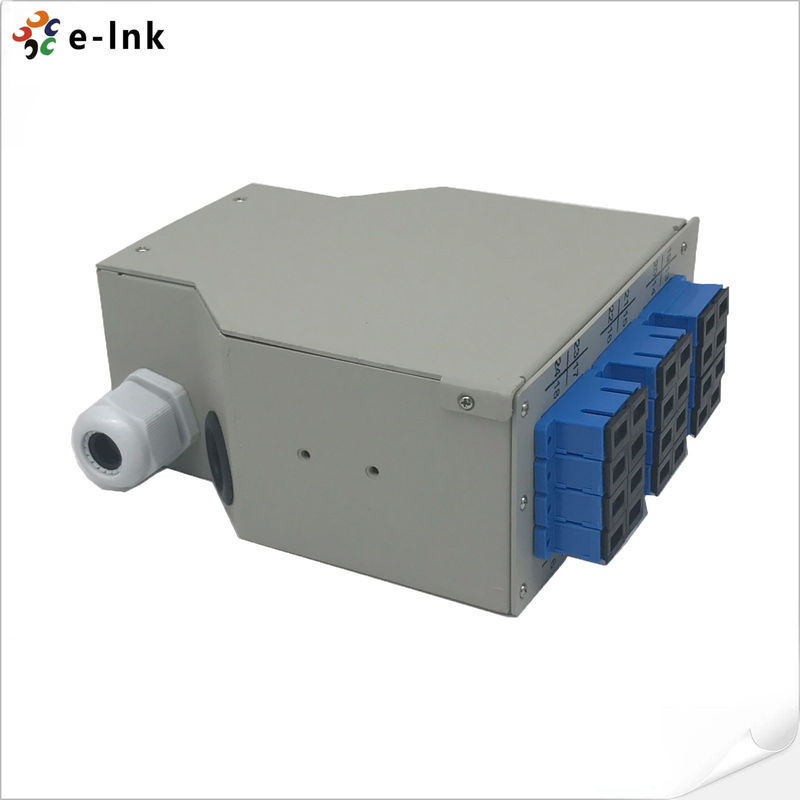

12SC Duplex Din-rail Mount Fiber Patch Panel

Product Advantages

· Up to 12 ports SC-Duplex adapters

· Din-rail mounting

· Space-saving installation

· IP20 protection

· 2x rear entries (PG 11 cable gland)

· Grey color (RAL 7035)

· -40°C to 80°C (-40°F to 176°F) operating temperature

· Other configurations on demand

Overview

E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination or fusion splicing of the fibers. The materials used for the patch panel is of high quality anodized aluminum with natural finishes making it light weight and compact in size. Features designed to save space especially when mounted within enclosures or cabinet with other din rail mount equipment. The patch panel can be loaded with 12 SC duplex adapters.

Technical Indexes

General
Application	Harsh environment,
Design	Splice distributor
Color	Gray
Dimensions (LxWxH)	131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch)
Weight	0.6KG
Mounting Options	DIN-Rail
Connections/Interfaces
Cable access/outlet	From top or bottom, straight or inclined
Equipped Adapters
SC-Duplex	Max. 12pcs
Mechanical
Strain relief	PG gland
Materials
Casing	Al (Aluminum)

Ordering information

Model	Description
LNK-FSB-D-12SC	12SC Duplex DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs SC/PC SM Duplex adapters
