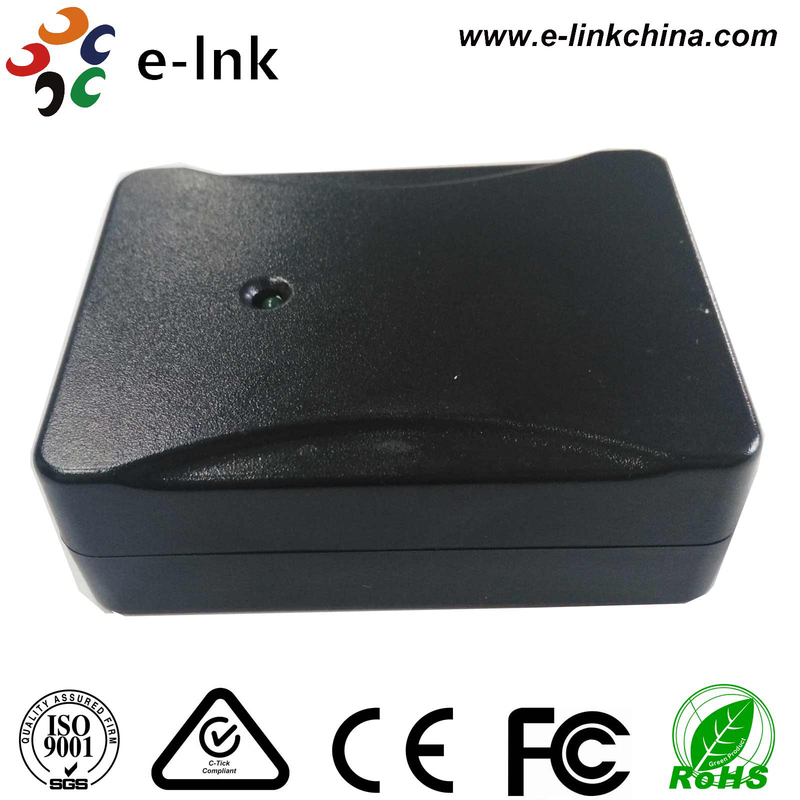

POE Converter 48V to 24V

Name: POE Converter 48V to 24V
Brand: E-link China Technology Co.,LTD
SKU: LNK-FLQ4824
Price: 64.00 USD
Availability: InStock

Detalles del producto

Place of Origin: China

Nombre de la marca: E-link

Certificación: CE，FCC

Model Number: LNK-FLQ4824

Documento: E-link POE 48V to 24V Conve....0.pdf

Condiciones de pago y envío

Minimum Order Quantity: 1pcs

Precio: Negociable

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:

Weight:	250g	Operating temperature:	-20°～55°C
CasingCasingCasingCasingCasing:	Aluminum Case	Mounting Options::	DIN-Rail / Wall-mount
Size:	72 (long) x 55 (wide) x 31 (high) mm

Weight:	250g
Operating temperature:	-20°～55°C
CasingCasingCasingCasingCasing:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount
Size:	72 (long) x 55 (wide) x 31 (high) mm

Descripción

POE Converter 48V to 24V

Product Advantages

· The IEEE 802.3af/at Ethernet standard support

· Support 10/100M or 10/100/1000M data transmission

· The PD receiving end 36V-57V support various voltage transfer, the use of UPS DC power users

· Selectable power output: it can provide 24V voltage, to adapter Access Points

· High quality design, effectively ensure the stability of the equipment reliability

· Short circuit protection

· LED indicators for power input indication

· Plug-and-Play, requires no configuration

Overview

The Converter LNK-FLQ Series is a economical and practical, with high performance and high reliability, and electric equipment based on the IEEE 802.3af/at PoE remote, can through the cable transmission of power and data signal separation. The LNK-FLQ Series Converter the 48VDC over the RJ45 Ethernet cable into 24V passive PoE power output, with the use of power supply equipment, can be flexible to expand the Access Points and other PoE client devices through an Ethernet cable from a PoE Gigabit Ethernet Switch, without the need to limit the layout of the power line.

Technical Indexes

POE separator product specifications
Product model	LNK-FLQ	LNK-FLQ4824	LNK-FLQ4824G
POE Agreement	802.3af Standard		802.3atStandard
Port speed	10/100M	10/100/1000M
Input voltage	DC48V/0.3A		DC48V/0.3A
Output voltage	24V/0.5A		24V/1A
POE Pin	1/2(+),3/6( - )4/5(+),7/8( - )Compatible
LED Indicator	DC power supply is green
Temperature	Working temperature: -10 ~ 45 °C
Humidity	10〜90％(non condensing)
Size	72 (long) x 55 (wide) x 31 (high) mm
Weight	250g
Safety & Emission	CE,FCC

Ordering information

Model	Description
LNK-FLQ4824	10/100M PoE Converter, Input voltage: DC48V/0.6A, Output voltage selectable: 24V/1A,PoE Pin: 1/2(+), 3/6( - )4/5(+),7/8( - )Compatible, without PD detection function
LNK-FLQ4824D	10/100M PoE Converter, Input voltage: DC48V/0.6A, Output voltage selectable: 24V/1A,PoE Pin: 1/2(+), 3/6( - )4/5(+),7/8( - )Compatible, with PD detection function
LNK-FLQ4824G	10/100/1000M PoE Converter, Input voltage: DC48V/0.6A, Output voltage selectable: 24V/1A,PoE Pin: 1/2(+), 3/6( - )4/5(+),7/8( - )Compatible, without PD detection function
LNK-FLQ4824GD	10/100/1000M PoE Converter, Input voltage: DC48V/0.6A, Output voltage selectable: 24V/1A,PoE Pin: 1/2(+), 3/6( - )4/5(+),7/8( - )Compatible, with PD detection function
