95W SFP PoE Injector

95W SFP PoE Injector

Product Advantages

· Gigabit SFP port for Fiber
LNK-PSE951G-SFP is a small switch. Data output through PoE port and SFP port simultaneously, that is to say, besides power device near, LNK-PSE951G-SFP also could transmit data to remote equipment. LAN, Fiber and PoE are data intercommunicating.

· High PoE 95W output, active PoE Injector
Output voltage is rated, 55Vdc. With detection chip inside, before powering, there has a detect process.

· 4KV surge protection on PoE port
To protect indoor devices and inner components from surge damage, we design 4KV (10/700μs) on PoE port.

· AC Port: 2KV(1.2/50us) surge protection

· Wide Working temperature -40℃ to 65℃
LNK-PSE951G-SFP design industrial level working temperature -40℃ to 65℃, to meet harsh conditions requirements.

Overview

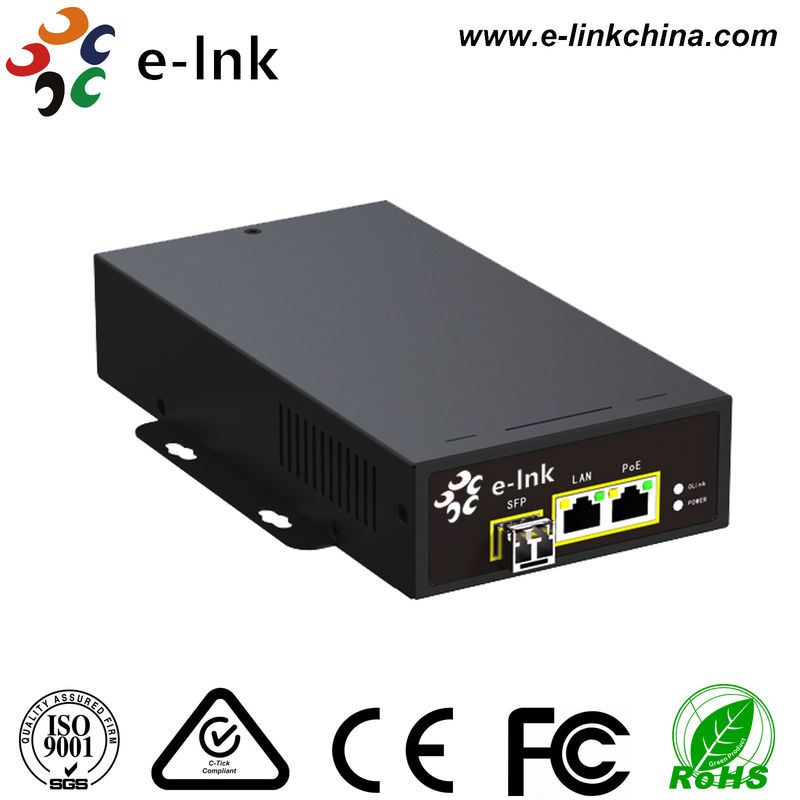

LNK-PSE951G-SFP is a single port PoE Injector with SFP fiber connection port. It provides 55Vdc, 1.75A power for remote PDs over full-4pairs output with 4KV (10/700us) surge protection. It supports both 10/100Base-T and Gigabit device. It works for 95W PoE PDs, such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at, PoE++ compliant terminals. It works like a switch; data is interoperable among LAN port, PoE port and SFP port.

Technical Indexes

Ordering Information
