SFP Slot Fast Ethernet Media Converter
, 100M Fast Ethernet Media Converter
10 / 100M Fast Ethernet Media Converter (with External Power Supply) SFP Slot
10/100M Fast Ethernet Media Converter (with External Power Supply) SFP Slot
Model : LNK-1100 Series
Overview

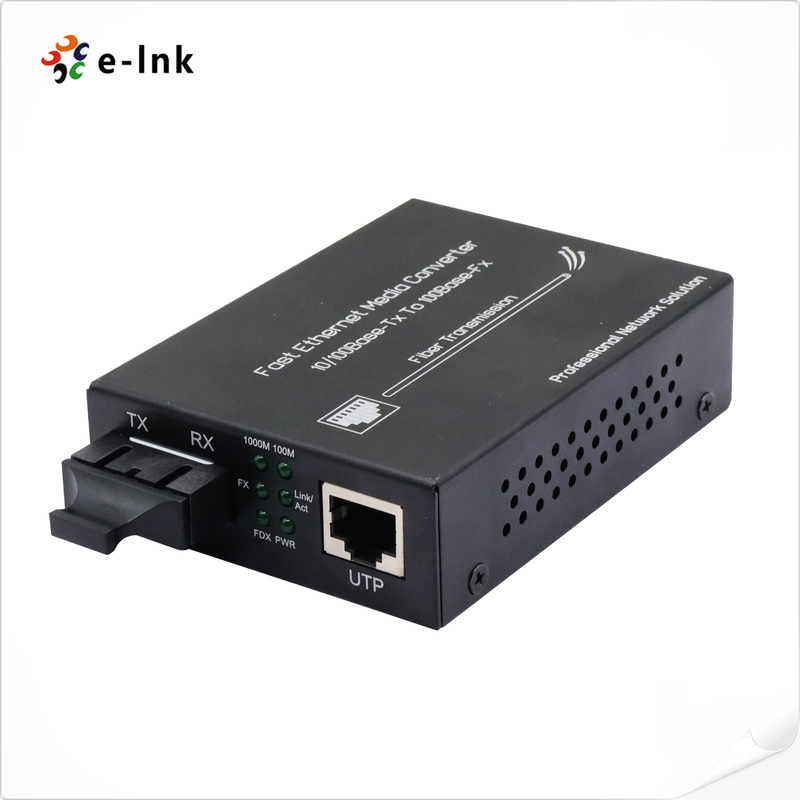

The 10/100M Fast Ethernet Media Converter (with External Power Supply) SFP Slot
(LNK-1100 Series) is a professional network conversion solution engineered for seamless
signal transition between copper and fiber media. As a 10/100M Fast Ethernet Media
Converter (with External Power Supply) SFP Slot, it excels in inter-converting electrical
signals from 10Base-T/100Base-TX twisted pairs with optical signals from 100Base-FX,
ensuring stable data transmission across different network infrastructures.
This 10/100M Fast Ethernet Media Converter (with External Power Supply) SFP Slot
significantly extends network reach: it breaks through the 100m limitation of copper
cables, enabling transmission up to 120km via fiber optic cables, making it ideal for
long-distance communication scenarios. It supports diverse fiber transmission modes,
including multi-mode dual fiber, single mode dual fiber, and single mode single fiber,
adapting to various installation environments and distance requirements.
Equipped with a dedicated SFP slot, the 10/100M Fast Ethernet Media Converter
(with External Power Supply) SFP Slot offers flexible compatibility with different SFP
transceivers, enhancing adaptability to diverse fiber types. Its external power supply
design ensures consistent performance in industrial settings or high-demand networks
where reliable power is critical. This combination of versatility, long-distance capability,
and stable power support makes the 10/100M Fast Ethernet Media Converter (with
External Power Supply) SFP Slot a trusted choice for extending 10/100M fast Ethernet networks.
Features
► 10/100Mbps auto-sensed, facilitating network upgrade
► full-duplex and half-duplex auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission with optional dip-switch
► Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets
Options in single mode dual fiber, multi-mode dual fiber, and single mode in
Technical Indexes
|
Parameter
|
Specifications
|
|
Access mode
|
10/100Mbps
|
|
Standard
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
Transmission distance
|
Dual-fiber multi-mode: 2 km;
Dual-fiber single mode: 20/40/60/80/100/120 km;
Single fiber single mode: 20/40/60/80/100 km
Category-5 twisted pairs: 100m
|
|
Port
|
One RJ45 port: for connecting STP/UTP category-5 twisted pairs
One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm)
Single mode, dual fiber: SC or FC (9/125μm)
Single mode Single fiber: SC or FC (9/125μm)
|
|
Conversion means
|
Store and Forward mode or Cut-Through mode
|
|
Buffer space
|
Built in 128Kb RAM for data buffer
|
|
Flow control
|
Full duplex: flow control;
Half duplex: back pressure
|
|
|
<19-9
|
|
MTBF
|
100,000 hours
|
|
LED indicator
|
POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)
|
|
Power supply
|
DC 5V / 1A
|
|
Power consumption
|
<40W (the chassis at full load), <2W
|
|
Operating temperature
|
-10~55ºC
|
|
Operating humidity
|
5%~90%
|
|
Maintaining temperature
|
-40~70ºC
|
|
Maintaining humidity
|
5% ~ 90% non-condensing
|
|
Dimensions (W x D x H)
|
71 x 94 x 26 mm
|
Ordering Information
|
Item
|
Description
|
|
|
LNK-1100
|
10/100Base-T to 100Base-F, multi-mode, 2km, 1310nm, SC, standalone, external power adaptor
|
|
LNK-1100S-20
|
10/100Base-T to 100Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
|
|
LNK-S1100-20
|
10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
|
