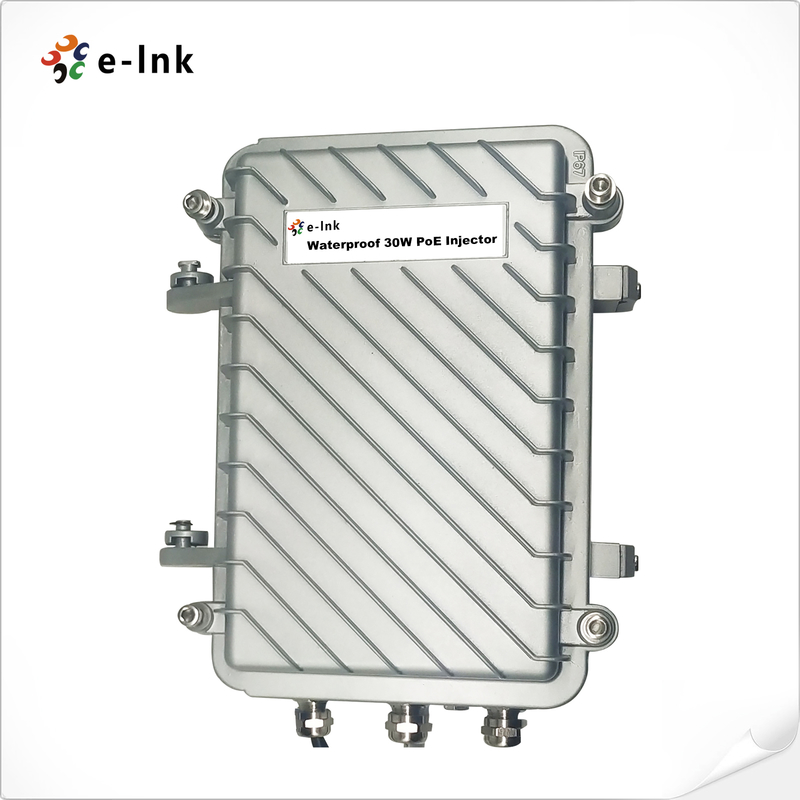

Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection

Name: Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection
Brand: E-link China Technology Co.,LTD
SKU: LNK-WP301
Price: 57.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: China.

Nombre de la marca: E-link

Certificación: ROHS,FCC,CE

Número de modelo: LNK-WP301

Condiciones de pago y envío

Cantidad de orden mínima: 1 PCS

Precio: Negociable

Detalles de empaquetado: Paquete de Exportación Estándar del Inyector

Tiempo de entrega: 3-12 días hábiles

Condiciones de pago: L/C, T/T, Western Union, Moneygram, PayPal

Capacidad de la fuente: 1000 pcs/mes

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                      Industrial 30W Gigabit PoE Injector, Industrial Gigabit PoE Injector, Waterproof Gigabit PoE Injector


Palabras clave:	Inyector de POE	Temperatura de funcionamiento:	-40 °C a 80 °C
Dimensiones (W x D x H):	260 mm x 210 mm x 80 mm	Peso:	1.5 kg
Humedad:	el 10% al 90%, no-condensación	Potencia de entrada:	12~48VDC

Palabras clave:	Inyector de POE
Temperatura de funcionamiento:	-40 °C a 80 °C
Dimensiones (W x D x H):	260 mm x 210 mm x 80 mm
Peso:	1.5 kg
Humedad:	el 10% al 90%, no-condensación
Potencia de entrada:	12~48VDC

Descripción

Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection

Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection Advantages

► Protection level: IP67

► 6KV(10/700us) surge protection on LAN, PoE ports

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)

► Supports Wall-mount installation

► Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature

Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection Overview

LNK-WP301 provides 30W PoE power for remote PDs over 2 pairs output with 6KV (10/700us) surge protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, a long with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.

Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection Technical Indexes

Parameter	Specifications
Standard	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250
Input & Output	Input : 12~48VDC Output: IEEE802.3at 30W Power Pins: 4/5(+), 7/8(-) Data Speed: 10/100/1000Mbps
Working Environment	Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters
AC Surge Protection	Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV
PoE Surge Protection	Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV

Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection Ordering Information Ordering Information

Model	Description
LNK-WP301	Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection

Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection 0
