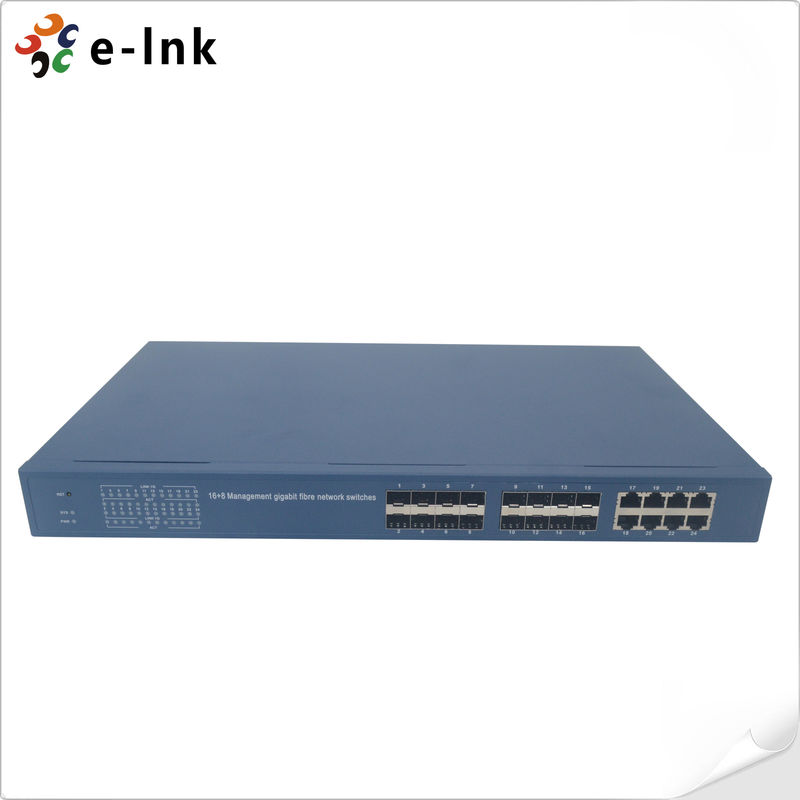

8G + 16SFP Management Gigabit Fiber Switch

Name: 8G + 16SFP Management Gigabit Fiber Switch
Brand: E-link China Technology Co.,LTD
SKU: El LNK-FS168
Price: 75.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: China

Nombre de la marca: E-link

Certificación: CE, FCC, RoHS

Número de modelo: El LNK-FS168

Condiciones de pago y envío

Cantidad de orden mínima: 1 piezas

Precio: Negotiated

Detalles de empaquetado: Paquete de exportación estándar

Tiempo de entrega: Entre 5 y 12 días hábiles

Condiciones de pago: T / T, Paypal

Capacidad de la fuente: 1000 piezas por boca

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                              8G Gigabit Fiber Switch, Management Gigabit Fiber Switch, 16SFP Gigabit Fiber Switch


Puerto:	16 puertos ópticos SFP de 1000m y 8 puertos RJ45 RJ45	Tabla de direcciones VLAN:	4K
Tabla de direcciones MAC:	8k	Dimensiones:	440x230x44mm (chasis estándar de 1u19 pulgadas)

Puerto:	16 puertos ópticos SFP de 1000m y 8 puertos RJ45 RJ45
Tabla de direcciones VLAN:	4K
Tabla de direcciones MAC:	8k
Dimensiones:	440x230x44mm (chasis estándar de 1u19 pulgadas)

Descripción

8G + 16SFP Management Gigabit Fiber Switch

Advantage

► Support for 802.1x authentication, and to provide users with access to authentication

► Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure

► Support the function of port mirroring, port gathering, port speed limit

► Support the port-based VLAN and IEEE802.1Q based on VLAN

► Storm suppression: can be set with the Broadcast, multicast, DLF traffic

Overview

16+8 Management Gigabit fiber network switch is a second, fourth layer gigabit managed switch,

provides 810/100M/1000M RJ45 ports and 16 1000M SFP optical ports. The hard ware supports

wire-speed switching of the second layer.

Technical Indexes

Product Type	16+8 Management gigabit fiber network switches
Support agreement	IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak
Maximum frame length	9216B
Ports	16 1000M SFP optical ports and 8 10/100/1000M RJ45 ports
Network Media	1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.
	1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.
	10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S
	100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S
	1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S
VLAN Address Table	4K
MAC address table	8K
Cache	32Mbits
Backplane bandwidth	52Gbit
Filtering and forwarding rate	10Mbps:14880pps
	100Mbps:148800pps
	1000Mbps:1488000pps
Dimensions	440x230x44mm(1U19-inch standard chassis)
Use of the environment	Operating Temperature: 0℃～40℃;
	Humidity 10% ~ 90% non-condensing
	Storage temperature: -20℃~70℃; Storage Humidity 5% ~ 90% non-condensing
Power	Input :90-264VAC ,50-60HZ; output: 5V/12A
Power consumption	Power consumption: 60W
