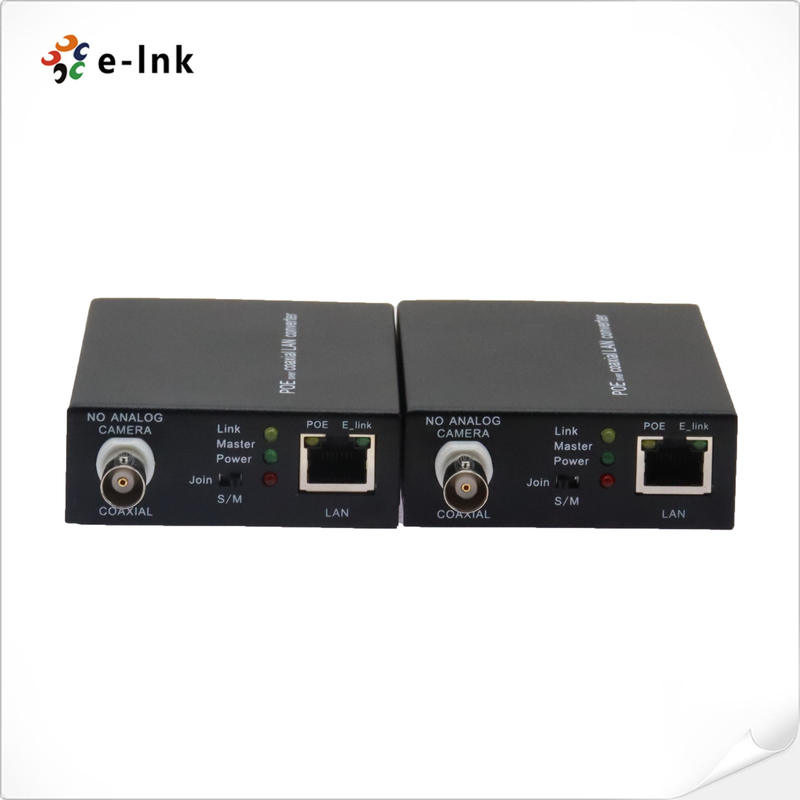

LNK-ECP1100 Series Ethernet over Coax Extender

Name: LNK-ECP1100 Series Ethernet over Coax Extender
Brand: E-link China Technology Co.,LTD
SKU: Se aplicará el procedimiento siguiente:
Price: 64.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: China

Nombre de la marca: E-link

Certificación: CE, RoHS, FCC, ISO9001

Número de modelo: Se aplicará el procedimiento siguiente:

Documento: LNK-ECP1100 Series Ethern....0.pdf

Condiciones de pago y envío

Cantidad de orden mínima: 1 piezas

Precio: Negociable

Detalles de empaquetado: Empaquetado estándar del cartón del interruptor industrial del PoE

Tiempo de entrega: 7-10 días laborables

Condiciones de pago: L/C, T/T, Western Union, MoneyGram, Paypal y otros

Capacidad de la fuente: 100000 piezas/mes

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                              Coax Ethernet Extender, LNK-ECP1100 Series Ethernet


Peso:	195 gramos	Dimension (mm):	94.5x71.5x26.5(mm)
Maximum Power:	Up to 30W	Temperatura de funcionamiento::	-20~+70°C

Peso:	195 gramos
Dimension (mm):	94.5x71.5x26.5(mm)
Maximum Power:	Up to 30W
Temperatura de funcionamiento::	-20~+70°C

Descripción

LNK-ECP1100 Series Ethernet over Coax Extender

4U Video Converter Rack

Product Advantages

· Transmit 10/100Base-TX Full Duplex Ethernet up to 300m over coaxial cable.
· 56V DC is distributed over the coax to all connected equipment.
· Powers PoE, PoE+, or High-Power PoE cameras (or other PoE devices), up to 30 watts.
· One EoC transceiver at the network-end can support multiple remote transceivers/IP cameras by using analog BNC splitter.
· Easy configuration, no PC required

Overview

The LNK-ECP1100 Ethernet Over Coax Extender with PoE+ is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 300meters. Network max baud-rate is up to 100Mbps. It has excellent lightning protection and Anti-interference.

Technical Indexes

Name	Model/Type	Specification
Product	Model No.	LNK-ECP1100(PoE) and LNK-EC1100(Non-PoE)
Coaxial-line	Standards	Base on up-to-date advanced IEEEP1901 for Ethernet over coax (EOC) Application with raw data Rates up to 90Mbps
Coaxial-line	Connector	Coaxial BNC
Line Rates	Phy Rate	Maximum Link Rates 90Mbps
Ethernet Interface	Standards	SO/IEC802.3 (ANSI/IEEE802.3i) 10BASE-T Ethernet
		IEEE802.3u, 100BASE-TX, Fast Ethernet
		IEEE802.3ab 100BASE-T
	PHY Connection	KSZ8041,10BASE-T,100BASE-T,With Auto-detect Auto MDIX
	Connector	RJ-45 Connector for 10BASE-T, 100BASE-TX Ethernet Interface
LED Indicators	RJ45-DATA	Data Link/Green
	RJ45-PoE	PoE On/Yellow
	PWR	56V DC Link/Red
	BNC Join	CS-Product link/Orange

Odering Information

Model

Description

LNK-ECP1100

Ethernet over Coaxial Converter with PoE, 300m transmission

distance, including Master unit and Slave unit.

(not including power supply adapter)

LNK-EC1100

Ethernet over Coaxial Converter, 1000m transmission distance,

Including Master unit and Slave unit.

(not including power supply adapter)
