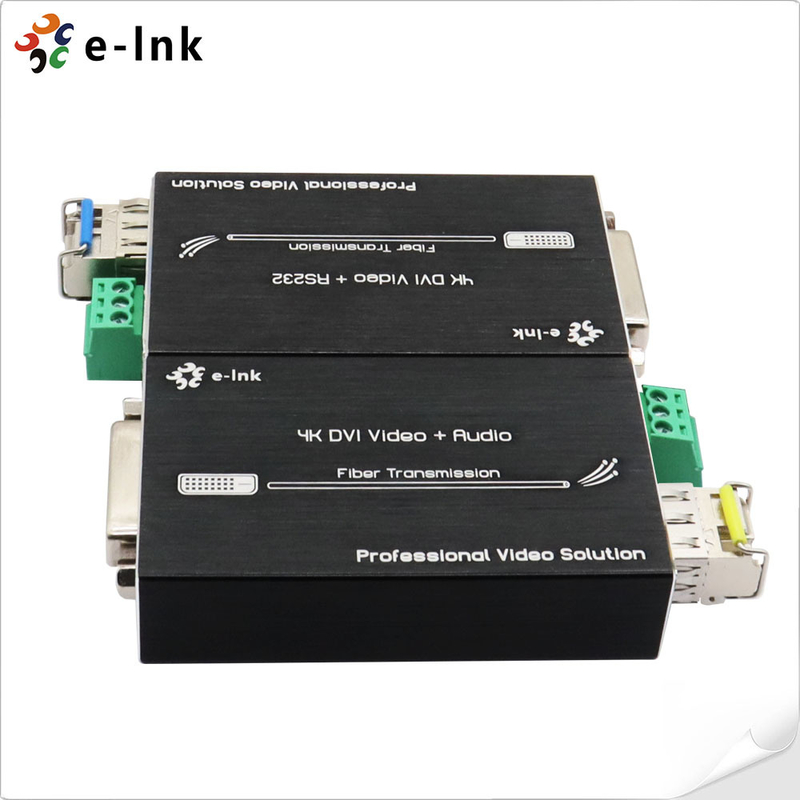

Mini 4K DVI Fiber Optic Extender with RS232

Name: Mini 4K DVI Fiber Optic Extender with RS232
Brand: E-link China Technology Co.,LTD
SKU: Extensor de fibra DVI 4K de la serie LNK-MDR4K
Price: 229.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: China

Nombre de la marca: E-link

Número de modelo: Extensor de fibra DVI 4K de la serie LNK-MDR4K

Documento: E-link LNK-MDR4K Series Min....0.pdf

Condiciones de pago y envío

Cantidad de orden mínima: 1 Unidad

Precio: Negociable

Detalles de empaquetado: Embalaje de cartón

Tiempo de entrega: 3-12 días laborables

Condiciones de pago: L/C, T/T, Western Union, MoneyGram, Paypal y otros

Capacidad de la fuente: 1000 piezas al mes

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                      DVI Fiber Optic Extender, Mini DVI Fiber Optic Extender, RS232 DVI Fiber Optic Extender


Connector:	DVI-D	Dimensions (WxDxH):	2.87 x 1.73 x 0.69in (73x44x17mm)
Operating Humidity:	5% to 90% RH (non-condensing)	Fiber type:	SFP/LC
Power Supply:	5V DC (USB-C)	Power dissipation:	<5W

Connector:	DVI-D
Dimensions (WxDxH):	2.87 x 1.73 x 0.69in (73x44x17mm)
Operating Humidity:	5% to 90% RH (non-condensing)
Fiber type:	SFP/LC
Power Supply:	5V DC (USB-C)
Power dissipation:	<5W

Descripción

Mini 4K DVI Fiber Optic Extender with RS232

Advantages

► DVI 1.0 and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support Serial RS232 Signal

► Auto EDID, match different kind display device

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Case Temperature: -10~50°C

Overview

The LNK-MDR4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and RS232 signal over optical fiber up to distances of 80km at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Order Information

Model	Description
Model	Description
LNK-MDR4K-MM	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S20	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S40	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S80	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input


Mini 4K DVI Fiber Optic Extender with RS232 0

Application

Mini 4K DVI Fiber Optic Extender with RS232 1
