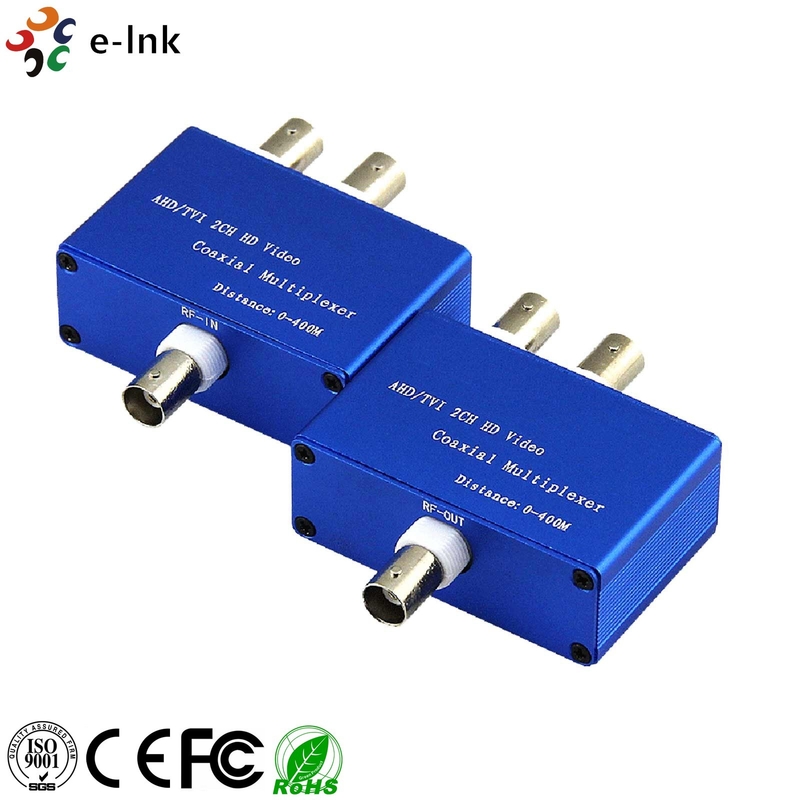

2~6 Channel Video Multiplexer for 1 Coaxial Cable

Name: 2~6 Channel Video Multiplexer for 1 Coaxial Cable
Brand: E-link China Technology Co.,LTD
SKU: El LNK-MV201
Price: 369.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: China

Nombre de la marca: E-link

Certificación: CE, RoHS and FCC

Número de modelo: El LNK-MV201

Documento: E-link 2~6-Ch Video Multipl....0.pdf

Condiciones de pago y envío

Cantidad de orden mínima: 1 piezas

Precio: Negociable

Detalles de empaquetado: Empaquetado estándar del cartón del interruptor industrial del PoE

Tiempo de entrega: 7-10 días laborables

Condiciones de pago: L/C, T/T, Western Union, MoneyGram, Paypal y otros

Capacidad de la fuente: 100000 piezas/mes

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                              1 Coaxial Cable Video Multiplexer, Coaxial Cable Video Multiplexer, 6 Channel Video Multiplexer


Dimensión:	La longitud de la línea es igual a:	Interfaz:	Bloque de terminales doble
Fuente de alimentación:	CC12V/1A	Impedancia de salida:	75 (desbalanceado)

Dimensión:	La longitud de la línea es igual a:
Interfaz:	Bloque de terminales doble
Fuente de alimentación:	CC12V/1A
Impedancia de salida:	75 (desbalanceado)

Descripción

2~6 Channel Video Multiplexer for 1 Coaxial Cable

Product Advantages

· 2-6Channel video signal for camera over 1 coaxial cable

· Designed according to projects with minimum installation volume requirement

· Long distance transmission up to 500m

· Frequency Division Multiplexing, with all video and data transmission real-time and all images high-definition and non-delay.

· Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets,

· One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)

· Maintaining high quality video & anti-interference immunity

· Easy installation with BNC harness

Overview

E-link LNK-MV series video multiplexer bound the 2~6-ch video signal of the camera and the control signal of rs485 reverse controller in one coaxial cables transmission. The Video Multiplexer is composed of a Transmitter and a Receiver. From the receiver to the transmitter, it transmits 2~6 channel video signals through one coaxial cable to long distance. Besides, as you don’t need to install extra cable for data signals, you can save your money and time.

Technical Indexes

Transmitter
	VIDEO 1	VIDEO 2	VIDEO 3	VIDEO 4	VIDEO 5	VIDEO 6
Central Frequency		46MHZ	38MHZ	30MHZ	30MHZ	30MHZ
Signal Output Intensity	105db	105db	103db	102db	102db	102db
Video Input Impedance	75 Ohm (Unbalanced)
Video Input Amplitude	0.8-1.5VPP
Video Compatible Format	PAL, NTSC
Video Interface	BNC
2-62-2-	8MHZ
Power Supply	DC12V/1A
Receiver
Signal Output Amplitude			0.9-1.1VPP
Output Polarity			Positive
Output Impedance			75(Unbalanced)
Video Interface			BNC
Power Supply			DC12V/1A
RS485 Output Parameter(Switch with VIDEO 1)
Quantity of Node Supported			10
Baud Rate			300-57600bps
Interface			Double terminal block
Dimension			15812439mm

Odering Information

LNK-MV201	2-Ch video converter transmitter and receiver for camera by one coaxial cable
LNK-MV301	3-Ch video converter transmitter and receiver for camera by one coaxial cable
LNK-MV401	4-Ch video converter transmitter and receiver for camera by one coaxial cable
LNK-MV501	5-Ch video converter transmitter and receiver for camera by one coaxial cable
LNK-MV601	6-Ch video converter transmitter and receiver for camera by one coaxial cable
