Features
► Protection level: IP67
► 6KV(10/700us) surge protection on LAN, PoE ports
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► Supports Wall-mount installation
► Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Overview

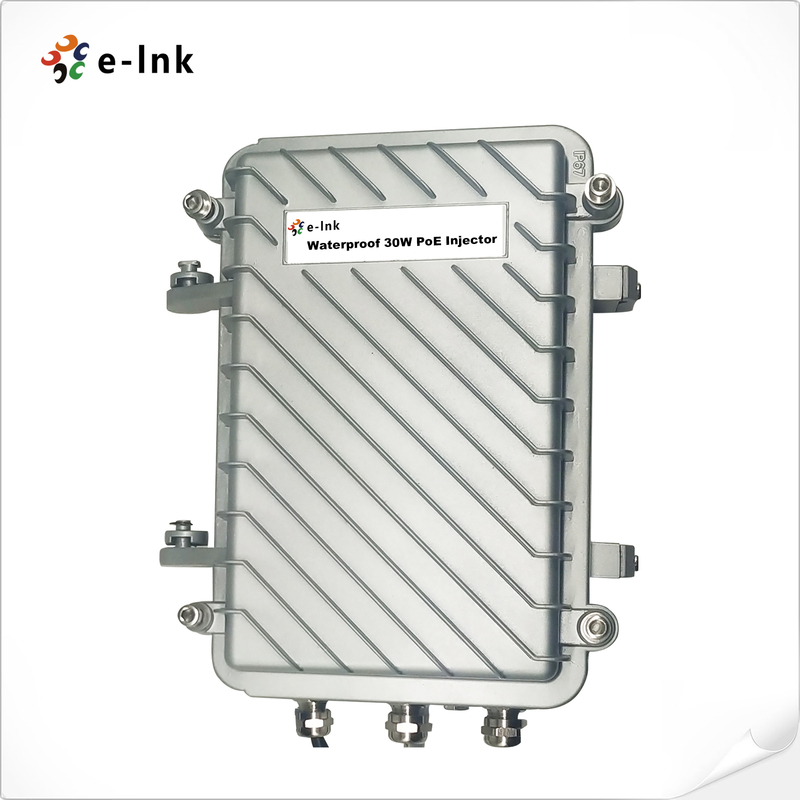

LNK-WP301 provides 30W PoE power for remote PDs over 2 pairs output with 6KV (10/700us) surge
protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring
safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless
LAN access points, security network cameras and other IP terminals to receive power, a long with data,
over standard Ethernet cables, leaving network infrastructure completely unaltered.
Application
Technical Indexes
| Parameter |
Specifications |
| Standard |
IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-Tx Fast Ethernet
IEEE802.3ab 1000Base-T Gigabit Ethernet
Support terminal equipment with IEEE802.3af/at
RoHS Compliance
WEEE Compliance
Protection Level: IP67, IEC60529, NEMA 250
|
| Input & Output |
Input : 12~48VDC
Output: IEEE802.3at 30W
Power Pins: 4/5(+), 7/8(-)
Data Speed: 10/100/1000Mbps
|
| Working Environment |
Operating Temperature: -40℃ to 80℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
|
| AC Surge Protection |
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
|
| PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
|
