Mini Industrial 5-Port Gigabit Ethernet Switch

Name: Mini Industrial 5-Port Gigabit Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC005G Series
Price: 218.90 USD
Availability: InStock

Detalles del producto

Place of Origin: China

Nombre de la marca: E-link

Certificación: ISO9001，EN55022

Model Number: LNK-IMC005G Series

Documento: E3NDS3~1.DOC

Condiciones de pago y envío

Minimum Order Quantity: 1 pcs

Precio: Negociable

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:

Mounting Options:	DIN-Rail/Wall-mount	Dimensions (WxDxH):	95 x 70 x 29 mm
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)	Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Input Power:	12~48VDC (Terminal Block)	Power Consumption:	<6W (PoE In Use: <125W)
Connector:	5 x 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

Mounting Options:	DIN-Rail/Wall-mount
Dimensions (WxDxH):	95 x 70 x 29 mm
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<6W (PoE In Use: <125W)
Connector:	5 x 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

Descripción

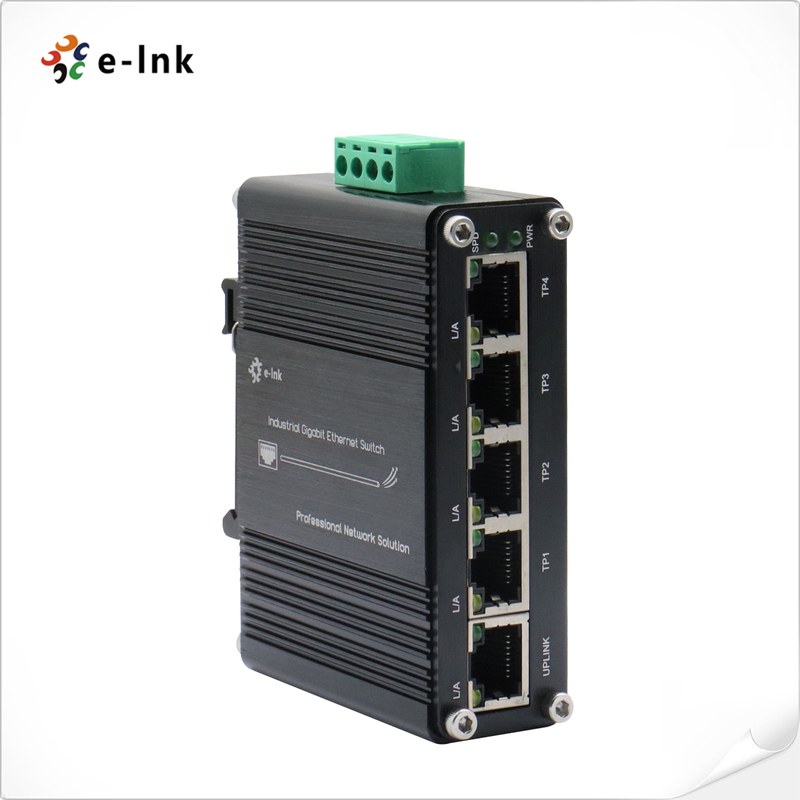

Mini Industrial 5-Port Gigabit Ethernet Switch

Advantages

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► PoE Optional

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.


Mini Industrial 5-Port Gigabit Ethernet Switch 0

Application

Mini Industrial 5-Port Gigabit Ethernet Switch 1

Ordering Information

Model	Description
LNK-IMC005G	Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
