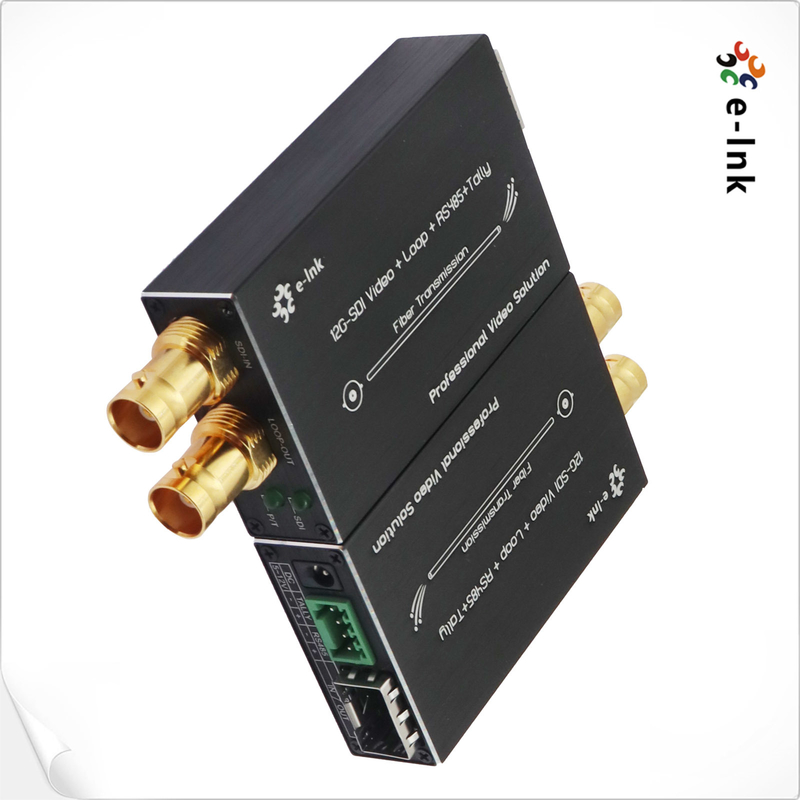

Mini 12G-SDI to Fiber Converter with Tally and RS485

Name: Mini 12G-SDI to Fiber Converter with Tally and RS485
Brand: E-link China Technology Co.,LTD
SKU: LNK-M12G-1V1T1D-20
Price: 594.00 USD
Availability: InStock

Detalles del producto

Place of Origin: China

Nombre de la marca: E-link

Certificación: CE

Model Number: LNK-M12G-1V1T1D-20

Documento: E-link LNK-M12G-1V Mini 12G....0.pdf

Condiciones de pago y envío

Minimum Order Quantity: 1pcs

Precio: Negociable

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:

Dimensions (LxWxH):	80 x 40 x 20 (mm)	Operating Temperature:	-40℃～85℃
Power:	5-15 VDC	Output cable specification:	≤70m@12G SDI Belden 1694A
Resolution range:	3840*2160@60Hz	Input:	1 x 12G-SDI on BNC

Dimensions (LxWxH):	80 x 40 x 20 (mm)
Operating Temperature:	-40℃～85℃
Power:	5-15 VDC
Output cable specification:	≤70m@12G SDI Belden 1694A
Resolution range:	3840*2160@60Hz
Input:	1 x 12G-SDI on BNC

Descripción

Mini 12G-SDI to Fiber Converter with Tally and RS485

Product Advantages

► Each SDI channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps

► Directly compatible with 12G/6G/3G-SDI camera systems

► Long transmission capability at least 10 km (6.2miles), up to 80 km

Technical Indexes

Formats	Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible	Compatible with DVB-ASI and AES10 (MADI)
Input	1 x 12G-SDI on BNC
Output	1 x LC optical fiber
Output	1 x 12G-SDI loop-out on BNC
Supported Resolution	HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range	3840*2160@60Hz
Input cable specification	≤70m@12G SDI Belden 1694A
Output cable specification	≤70m@12G SDI Belden 1694A
Data type	Backward Tally
Data type	Backward RS485
Optical transmission bandwidth	270MHz～12GHz
Power	5-15 VDC
Power Consumption	2 W (Max.)
Dimensions (LxWxH)	80 x 40 x 20 (mm)
Storage Temperature	-40℃～80℃
Operating Temperature	-40℃～85℃

Overview

LNK-M12G-1V1T1D Series Mini-type 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded), 1Ch Tally signal and 1Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

Application

Mini 12G-SDI to Fiber Converter with Tally and RS485 0

Ordering Information

Model	Description
LNK-M12G-1V1T1D-20	Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
